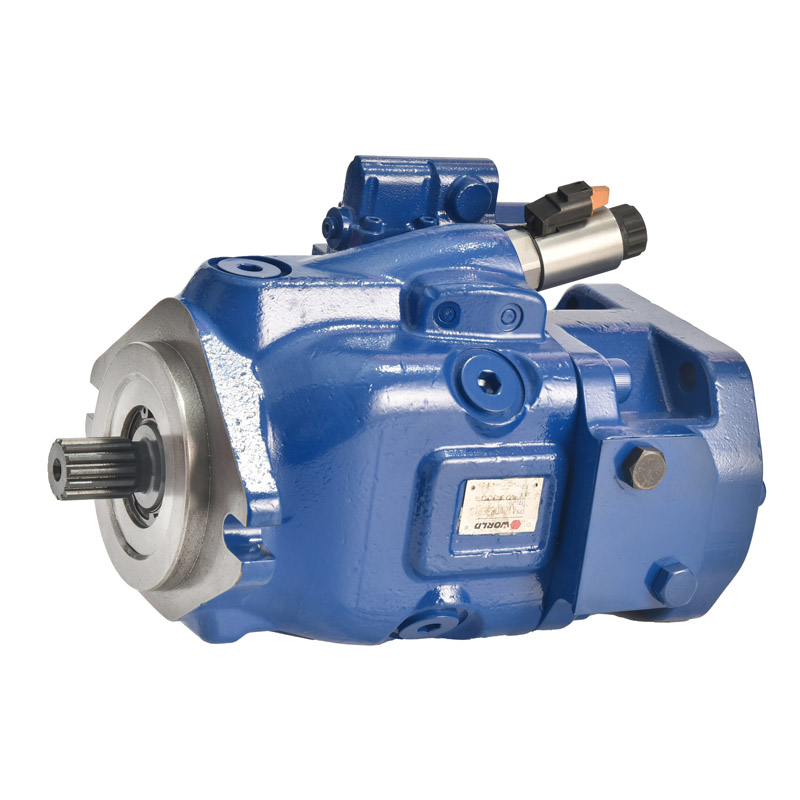

Open variable pump A10VO85EP1

Application scenarios：

Swash plate structure axial piston variable displacement pump, suitable for hydraulic transmission in open circuits;

The flow rate is proportional to the speed and displacement, and can be infinitely changed by adjusting the swash plate;

Strong bearings have a longer service life when aligned;

Good oil absorption;

Low noise, electro-hydraulic displacement control;

Assembly precautions

(1) During the assembly process, please be careful not to leave burrs on the assembly surface and do not allow dust to enter;

(2) After assembly, dust proof treatment should be applied to the exposed holes;

(3) Apply rust inhibitor to the input shaft and flange;

(4) When spraying paint, the nameplate and installation surface need to be covered to avoid painting.

Operation precautions

(1) When transporting hydraulic pumps, do not subjected the drive shaft of the pump body to strong impact;

(2) Before operation, it is necessary to exhaust through the exhaust port to fill the housing with clean hydraulic oil;

(3) When running the hydraulic pump, be careful not to let hydraulic oil and other liquids flow onto the surface of the hydraulic pump assembly;

(4) The cleanliness of the hydraulic oil used should meet NAS level 9.

model	A10VO85EP1D/53L-VUC12K68
displacement	85mL/r
Rotation direction	Left-handed rotation
Rated speed	2500rpm
Maximum speed	3000rpm
Rated pressure	250bar
Maximum pressure	315bar
Cut off pressure	280bar
control mode	Electric proportional displacement control (DC) 12V, Deutsch DT04-2P connector
Input shaft	14T 12/24DP ANSI B92.1a
Installing flanges	SAE J744-32-4; Stop diameter 127mm, stop depth 12.7mm
Through axis drive	Installation flange: SAEJ744 101-2 (B); Internal spline: 13T 16/32DP
Housing return port	lSO 1192611/16-12UN-2B
Oil inlet	SAE 2 1/2 ", M12 x 1.75, thread depth 21
Oil outlet	SAE 1 1/4 ", M14 × 2, thread depth 25
