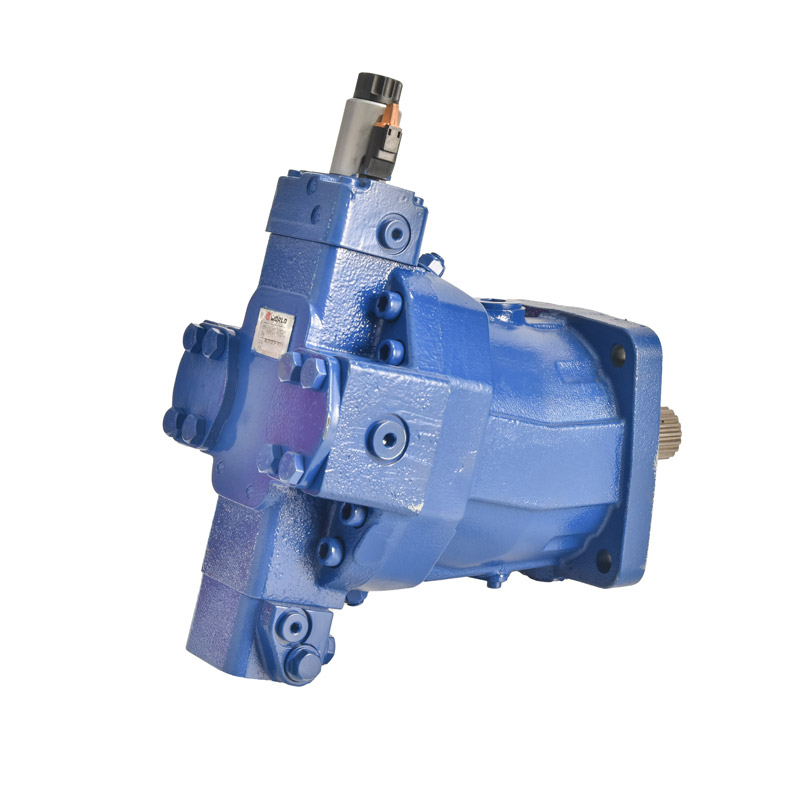

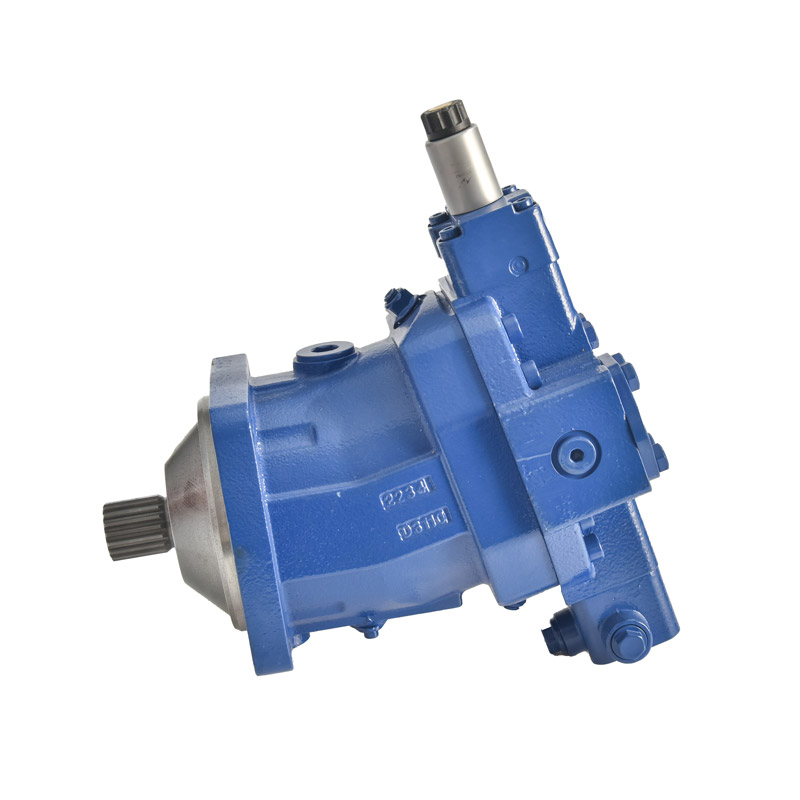

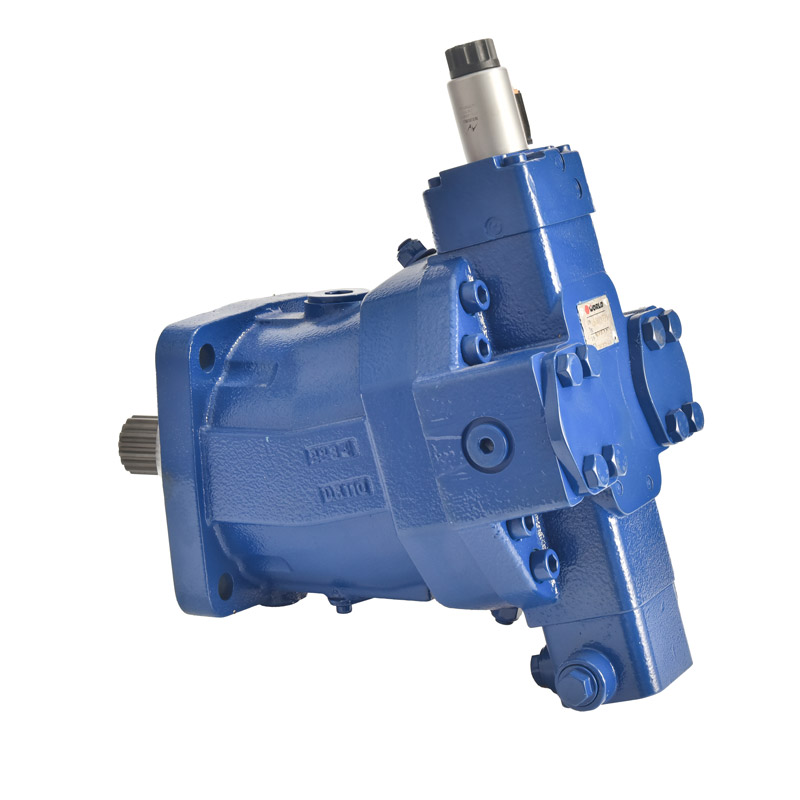

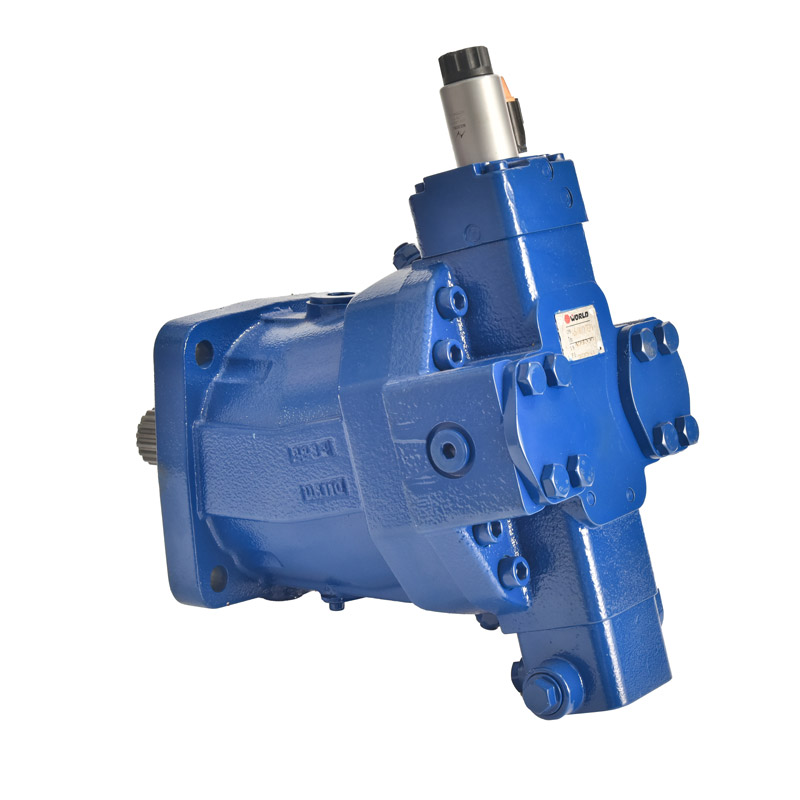

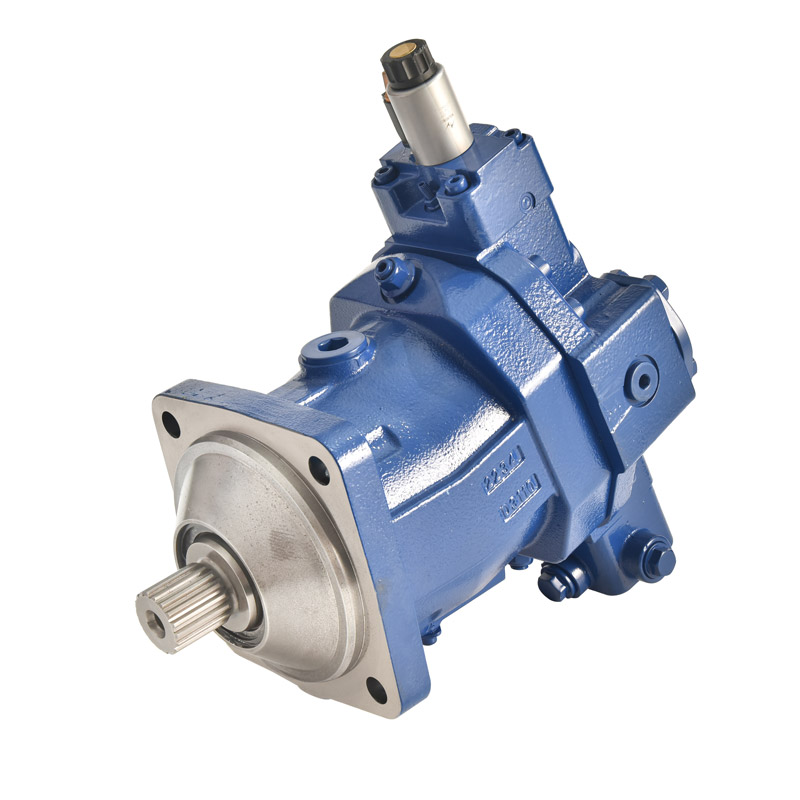

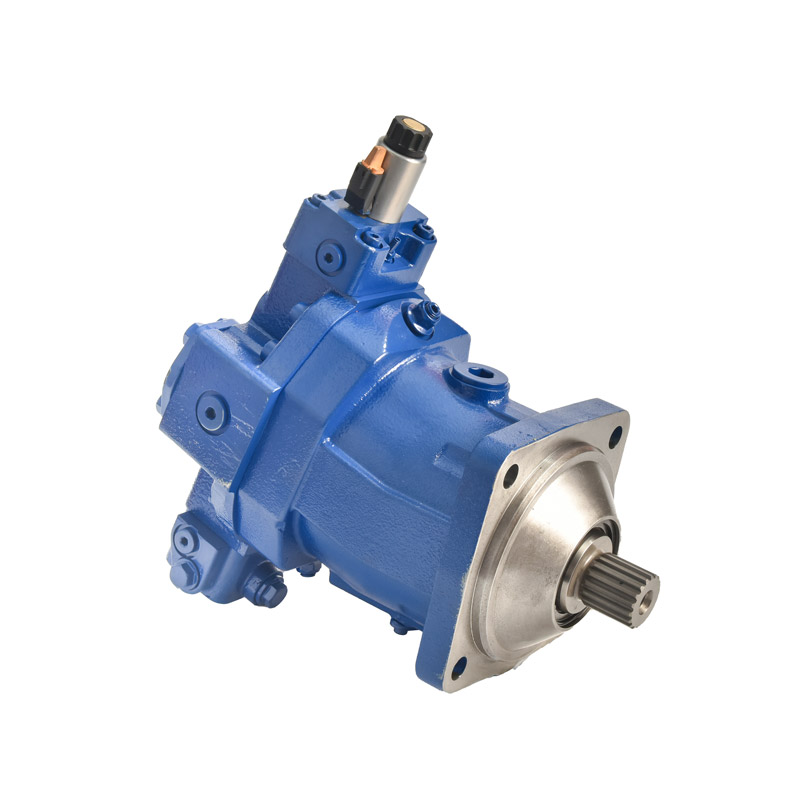

A6VM series oblique axis plunger hydraulic motorA6VM107
Model：A6VM107EP1/63W-VAB017-P-K
Name：A6VM series oblique axis axial piston variable displacement motor
Application scenarios：Suitable for walking machinery and industrial fields, etc
- specifications： 107cc/rev
- Rated pressure： 400bar
- Maximum pressure： 450bar
- Rated speed： 3550rpm
- Maximum speed： 5600rpm
- Product features
- Technical requirement
- Product parameter
Through a wide adjustment range, the variable motor can meet the requirements of high speed and large torque, suitable for open or closed hydraulic transmission circuits;
The displacement can be infinitely adjusted;
Multiple control devices;
The bearing system has a compact structure, is sturdy and durable, and has a long service life;
High power density, large range of oblique axis swing;
Before starting the operation of the motor, please ensure that the motor housing is filled with hydraulic oil;
When transporting hydraulic motors, do not subjected the output shaft of the motor to strong impact;
To ensure the reliability of motor function, hydraulic oil must have a cleanliness level of at least 20/18/15 according to ISo 4406. At very high hydraulic oil temperatures (90 ° C to a maximum of 115 ° C), at least according to ISO4406 cleanliness level 19/17/14
Assembly product testing program:
1) Sealing test: After sealing, conduct an airtightness test, and the test time should exceed 3 minutes under 0.4Mpa atmospheric pressure.
2) When in use, the coaxiality between the spindle and the connecting sleeve should not exceed Φ 0.1
| model | A6VM107EP1/63w-VAB017-P-K |
| Maximum displacement | 107mL/r |
| Set minimum displacement | 30ml/r(Adjustable) |
| Rotation direction | two-way |
| speed | Rated speed:3550rpm Maximum speed:5600rpm |
| System allowable pressure | Rated pressure:400bar Maximum pressure:450bar |
| Shell pressure | rated:3bar peak value:5bar |
| control mode | Electric proportional displacement control, 12V; DEUTSCH DT04-2P-EP04, 2-pin |
| Installing flanges | SAE flange, stop: 159.96-160mm, mounting hole 4-17.5, mounting hole indexing circle 200mm |
| output shaft | W40 × 2 × 18 × 9g DIN5480 with speed magnetic ring |
| Main oil port | DN25; M12 x 1.75; 20; SAE J5181, oil ports A and B are located behind the rear |
| Shell oil drain port | M33×2 |
| System pressure tap | M18×1.5 |
| Flushing oil port | G1/2 |
| Synchronous control oil port | M14×1.5 |
| Flushing flow rate | 10L/min |
