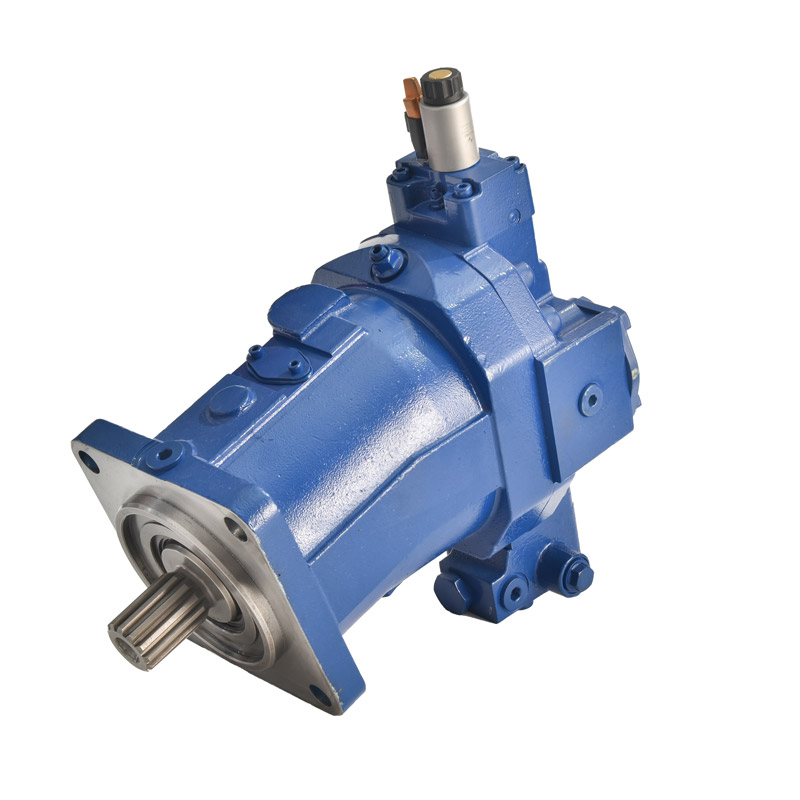

A6VM series oblique axis plunger hydraulic motorA6VM160
Model：A6VM160EP1/63W-VAB017-P-K
Name：A6VM series oblique axis axial piston variable displacement motor
Application scenarios：Suitable for walking machinery and industrial fields, etc
- specifications： 160cc/rev
- Rated pressure： 400bar
- Maximum pressure： 450bar
- Rated speed： 3100rpm
- Maximum speed： 4900rpm
- Product features
- Technical requirement
- Product parameter
Through a wide adjustment range, the variable motor can meet the requirements of high speed and large torque, suitable for open or closed hydraulic transmission circuits;
The displacement can be infinitely adjusted;
Multiple control devices;
The bearing system has a compact structure, is sturdy and durable, and has a long service life;
High power density, large range of oblique axis swing;
After installing the motor, inject 46 # hydraulic oil and confirm with the oil level gauge;
When transporting hydraulic motors, do not subjected the output shaft of the motor to strong impact;
To ensure the reliability of motor function, hydraulic oil must have a cleanliness level of at least 20/18/15 according to lSo4406, and a cleanliness level of at least 19/17/14 according to lS04406 requirements at very high hydraulic oil temperatures (90 ℃ to a maximum of 115 ℃)
Assembly product testing program:
1) Sealing test; After sealing, the airtightness test should be conducted for more than 3 minutes at 0.4Mpa atmospheric pressure
2) Operation: The overall deviation of the small gear should be within 0.5mm.
| model | A6VM1 60EP1/63w-VAB017-P-K |
| Maximum displacement | 160mL/r |
| Set minimum displacement | 50ml/r(Adjustable) |
| Rotation direction | two-way |
| speed | Rated speed:3100rpm Maximum speed:4900rpm |
| System allowable pressure | Rated pressure:400bar Maximum pressure:450bar |
| Shell pressure | rated:3bar peak value:5bar |
| control mode | Electric proportional displacement control, 120; DEUTSCH DT04-2P-EP04, 2-pin |
| Installing flanges | SAE flange, stop: 152.36-152.4mm, mounting holes 4-20.6, mounting hole spacing 161.6mm |
| output shaft | 13/4 in 13T 8/16DP with speed magnetic ring |
| Main oil port | DN32; M14x2; 22; SAEJ51811/4, oil ports A and B are located behind the rear |
| Shell oil drain port | 1 5/16-12UN |
| System pressure tap | M18×1.5 |
| Flushing oil port | G1/2 |
| Synchronous control oil port | M14×1.5 |
| Flushing flow rate | 40L/min |
